NNC69K
CLION
Availability: | |
---|---|
Quantity: | |
According to the analysis of current electrical industry applications and technical popularity, electromagnetic relays are still the most commonly used type of relays.
The simple and reliable structure is its most advantageous feature, which can realize the circuit through the mechanical contact, and the current technology is not only mature and low cost, which is very suitable for large-scale production. At the same time, the characteristics of high isolation and wide load of electromagnetic relays also make it widely welcomed in the market.

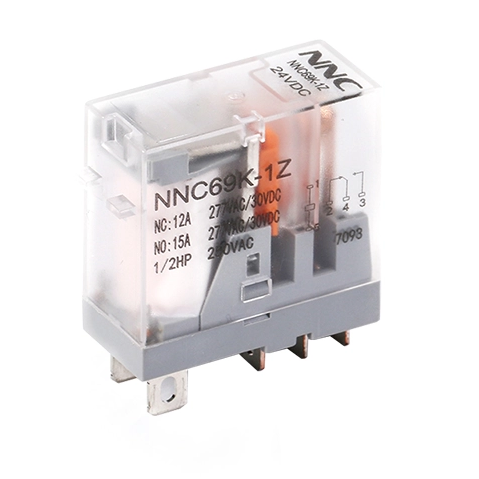

The NNC69K-1Z model is a miniature intermediate power relay that exemplifies precision and compactness in design. This single-pole relay is tailored for applications requiring a delicate balance between size and substantial contact capacity.
Product Features:
Single-Pole Design: The 1Z configuration provides a straightforward switching solution for applications with single contact needs.
DC/AC Coil Compatibility: Equipped to handle both DC and AC coil voltages, this relay offers versatility in power source integration.
High Contact Capacity: Rated for a contact capacity of 12A, the 1Z model is suitable for applications demanding higher current loads.
Lockable Test Button: Enhances the relay's functionality by allowing for secure testing and diagnostics.
LED Indicator: Optional LED indicator for visual confirmation of the relay's status.
Mechanical Operation Indicator: Provides a clear indication of the relay's operation status.
Product Advantages:
Compact Size: The miniature design allows for easy integration into space-constrained environments.
RoHS Compliance: Ensures environmental sustainability and adherence to global safety standards.
Safety Certifications: UL, TUV, and CQC certifications guarantee reliability and safety.
Mechanical and Electrical Endurance: With a minimum of 1x10^7 mechanical operations and 1x10^5 electrical operations, the relay is built for longevity.
Ag Alloy Contacts: Silver alloy contacts ensure low resistance and high conductivity, contributing to the relay's efficiency.
Conclusion:The NNC69K Series 1Z model is an ideal choice for applications that require a combination of compact design, high contact capacity, and reliable performance. Its versatility and robust construction make it a preferred component in various industrial and electronic systems.
NNC69K(JQX-14FT) Miniature PCB Relay |
| ||||||
Model and Description | |||||||
NNC69K-1Z | |||||||
★Contact form: H=NO, D=NC, Z=NO&NC | |||||||
Specification | |||||||
Dimension | 29mm*13mm*25.5mm | ||||||
Contact Feature | Form | 1Z(SPDT);1H(SPST-NO);1D(SPST-NC) | 2Z(DPDT);2H(DPST-NO);2D(DPST-NC) | ||||
Rated load | NO15A | NC12A | 8A | ||||
Max switching voltage | 277VAC/30VDC | ||||||
Contact resistance | ≤100mΩ | ||||||
Material | Ag Alloy(AgSnO2) | ||||||
Electrical life | ≥1*105 | ||||||
Mechanical life | ≥1*107 | ||||||
Operate voltage (23℃) | DC:≤75%*Rated voltage, AC:≤80%*Rated voltage | ||||||
Release voltage (23℃) | DC:≥10%*Rated voltage, AC:≥30%*Rated voltage | ||||||
Maximum voltage (23℃) | 110%*Rated voltage | ||||||
Coil voltage | DC3-110V, AC6-240V (Customize allowed) | ||||||
Coil power | DC: 0.53W, AC: 1.2VA | ||||||
Pick-up time | ≤20ms | ||||||
Release time | ≤10ms | ||||||
Dielectric strength | Between open contacts of same pole | 1200VAC/1min(leakage current 1mA) | |||||
Between contacts of different pole | 1200VAC/1min(leakage current 1mA) | ||||||
Between contacts and coil | 5000VAC/1min(leakage current 1mA) | ||||||
Insulation resistance | ≥100mΩ(500VDC) | ||||||
Ambient temperature | -55℃ ~70℃ | ||||||
Ambient humidity | 35%-80%RH | ||||||
Atmospheric pressure | 86-106KPa | ||||||
Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||||||
Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||||||
Installation | PCB or Socket with DIN Rail | ||||||
Weight | Approx. 19g/PCS | ||||||
Packing | Carton with foam box inside | 400PCS/Carton, G.W.: 8.5KG, N.W.: 7.5KG, Dimension(mm): 350×245×220 | |||||
Wiring Diagram & Bottom View | |||||||
Performance Graph | |||||||
