Dual-Pole Configuration: The 2Z model allows for the control of two circuits, doubling the switching capabilities in a single relay.
DC/AC Coil Compatibility: Like its 1Z counterpart, it supports both DC and AC coil voltages for flexible power integration.
Reduced Contact Capacity: With a rated contact load of 8A for each pole, the 2Z model is optimized for balanced dual-circuit applications.
Lockable Test Button and Name Plate: Optional features for secure testing and clear identification.
LED Indicator: Optional indicator for real-time status monitoring.
Space-Efficient Design: The compact design conserves space while providing dual-circuit switching capabilities.
Environmentally Friendly: Compliant with RoHS standards, ensuring eco-friendly operation.
Safety and Quality Assurance: Certified by UL, TUV, and CQC, the 2Z model meets high safety and quality benchmarks.
Long-lasting Performance: Designed to withstand extensive mechanical and electrical operations, ensuring a long service life.
Low Contact Resistance: The use of Ag Alloy (AgSnO2) ensures efficient and reliable switching.
| |||||||

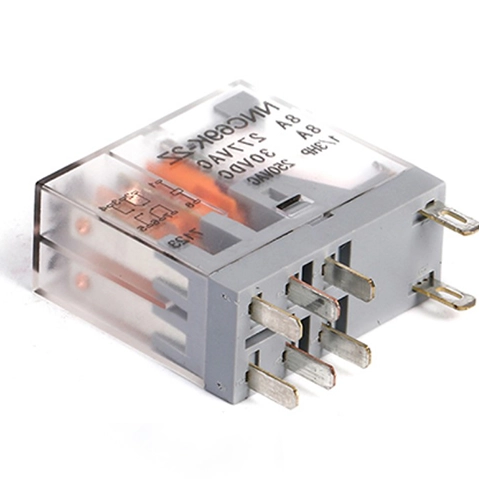

NNC69K(JQX-14FT) Miniature PCB Relay |
| ||||||
Model and Description | |||||||
NNC69K |
|
| |||||
★Contact form: H=NO, D=NC, Z=NO&NC | |||||||
Specification | |||||||
Dimension | 29mm*13mm*25.5mm | ||||||
Contact Feature | Form | 1Z(SPDT);1H(SPST-NO);1D(SPST-NC) | 2Z(DPDT);2H(DPST-NO);2D(DPST-NC) | ||||
Rated load | NO15A | NC12A | 8A | ||||
Max switching voltage | 277VAC/30VDC | ||||||
Contact resistance | ≤100mΩ | ||||||
Material | Ag Alloy(AgSnO2) | ||||||
Electrical life | ≥1*105 | ||||||
Mechanical life | ≥1*107 | ||||||
Operate voltage (23℃) | DC:≤75%*Rated voltage, AC:≤80%*Rated voltage | ||||||
Release voltage (23℃) | DC:≥10%*Rated voltage, AC:≥30%*Rated voltage | ||||||
Maximum voltage (23℃) | 110%*Rated voltage | ||||||
Coil voltage | DC3-110V, AC6-240V (Customize allowed) | ||||||
Coil power | DC: 0.53W, AC: 1.2VA | ||||||
Pick-up time | ≤20ms | ||||||
Release time | ≤10ms | ||||||
Dielectric strength | Between open contacts of same pole | 1200VAC/1min(leakage current 1mA) | |||||
Between contacts of different pole | 1200VAC/1min(leakage current 1mA) | ||||||
Between contacts and coil | 5000VAC/1min(leakage current 1mA) | ||||||
Insulation resistance | ≥100mΩ(500VDC) | ||||||
Ambient temperature | -55℃ ～70℃ | ||||||
Ambient humidity | 35%-80%RH | ||||||
Atmospheric pressure | 86-106KPa | ||||||
Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||||||
Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||||||
Installation | PCB or Socket with DIN Rail | ||||||
Weight | Approx. 19g/PCS | ||||||
Packing | Carton with foam box inside | 400PCS/Carton, G.W.: 8.5KG, N.W.: 7.5KG, Dimension(mm): 350×245×220 | |||||
Wiring Diagram & Bottom View | |||||||
Performance Graph | |||||||
