Miniature PCB Relay With SMD LED Indicator 14FT-1Z

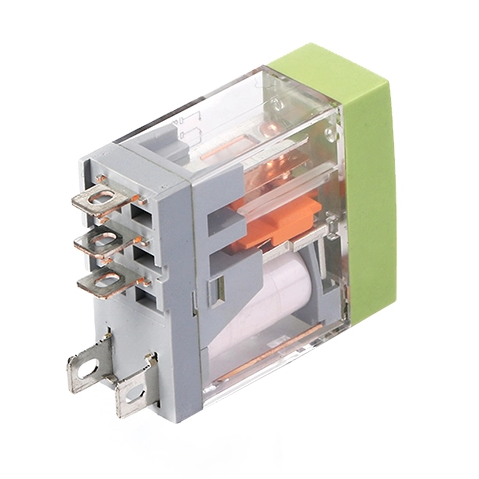

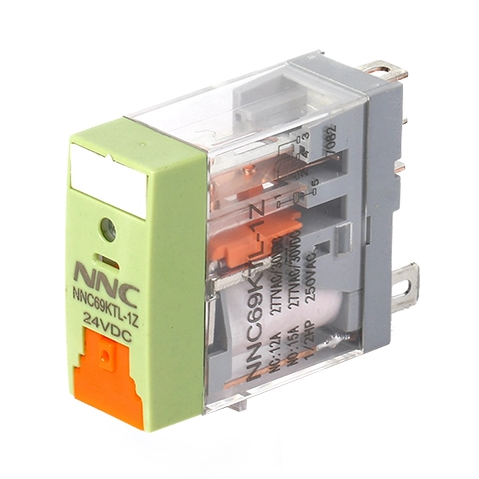

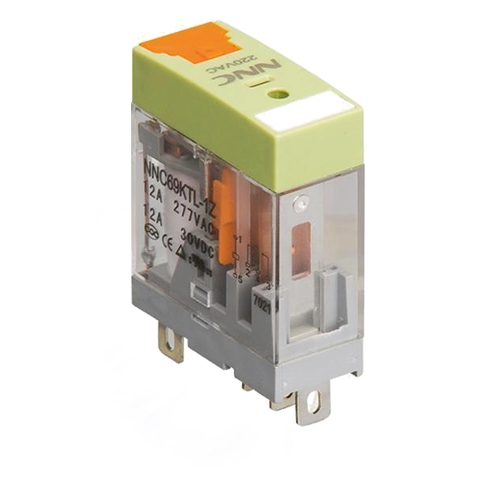

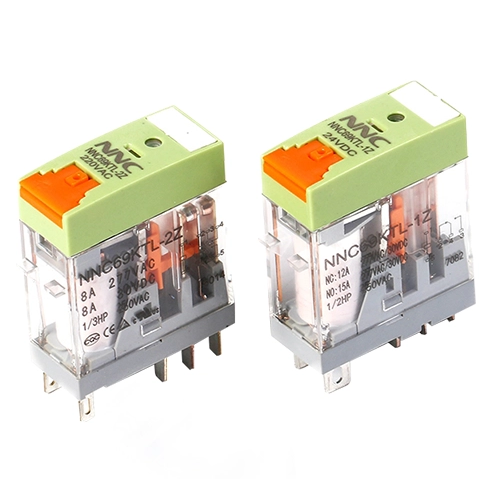

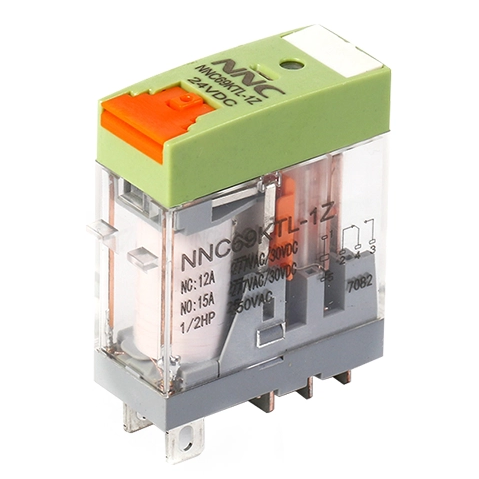

Product Introduction: NNC69KTL-1Z Miniature PCB Relay

Best Introduction for You to Pick NNC69KTL-1Z

This is a compact and versatile solution for a wide range of electronic applications. With a large coil voltage range. About this relay, it offers customization options to meet specific requirements. Its Form 1A, 1B, 1C rated load ensures reliable performance under various electrical loads. For its compact dimensions makes it ideal to match more applications. With features like silver alloy contacts, high dielectric strength, and excellent shock and vibration resistance, the NNC69KTL-1Z is a reliable and durable choice for your electronic projects.

Key Features:

• Model: NNC69KTL-1Z (JQX-14FT) - A compact and powerful relay designed for a wide range of applications.

• Coil Voltage: DC3-110V, AC6-240V, with customization options available to meet your specific requirements.

• Rated Load: Form 1A, 1B, 1C, ensuring robust performance under various electrical loads.

• Contact Form: A=NO (Normally Open), B=NC (Normally Closed), C=NO&NC (Normally Open and Normally Closed), offering flexibility in circuit design.

• Dimension: 28.8mm x 12.7mm x 34mm, making it an ideal choice for space-constrained applications.

Technical Specifications:

• Rated Load: NO 15A, NC 12A, 8A, capable of handling substantial electrical loads.

• Max Switching Voltage: 240VAC/28VDC, ensuring safety and reliability in high-voltage environments.

• Contact Resistance: ≤100mΩ, guaranteeing minimal energy loss and optimal signal transmission.

• Material: Silver Alloy, renowned for its excellent conductivity and durability.

• Electrical Life: ≥1*10^5 cycles, ensuring long-term reliability without frequent replacements.

• Mechanical Life: ≥1*10^7 cycles, demonstrating exceptional endurance in repetitive operations.

Operational Parameters:

• Operate Voltage: DC: ≤75% of Rated Voltage, AC: ≤80% of Rated Voltage, ensuring stable operation within a wide voltage range.

• Release Voltage: DC: ≥10% of Rated Voltage, AC: ≥30% of Rated Voltage, for reliable de-energization.

• Maximum Voltage: 110% of Rated Voltage, providing a safety margin against voltage fluctuations.

Safety and Environmental Resistance:

• Dielectric Strength: Offers robust protection with 1000VAC/1min for same-pole and opposite-pole contacts, and 5000VAC/1min for contacts and coil.

• Insulation Resistance: ≥100mΩ (500VDC), ensuring safety against electrical leakage.

• Ambient Conditions: Suitable for a wide range of temperatures (-55℃ to 70℃) and humidity levels (35%-80%RH), making it versatile for various environments.

• Shock and Vibration Resistance: Capable of withstanding 10G shock and 10-55Hz vibrations, ensuring stable operation in challenging conditions.

Ease of Installation:

• Installation Options: PCB or Socket with DIN Rail, providing flexibility in installation methods to suit your setup.

Packaging:

• Packing: Carton with foam box inside, 500PCS/Carton, ensuring safe and organized transportation.

• Weight: Approx. 17g/PCS, G.W.: 10KG, N.W.: 9KG, making it lightweight and easy to handle.

More Information you Should Know:

• Wiring Diagram & Bottom View: Available for easy integration into your projects.

• Performance Graph: Demonstrates the relay's performance characteristics, aiding in design and selection.

Conclusion for You to Make a Choice

Our NNC69KTL-1Z miniature PCB relay is not just a component; it's a commitment to excellence in every aspect of your electronic projects. We invite you to experience the difference that quality, reliability, and precision can make in your operations.

In the End, I'd like to tell you if you have some inquiries, please do not hesitate to contact us. We look forward to the opportunity to serve you and build a friendly business relationship.
