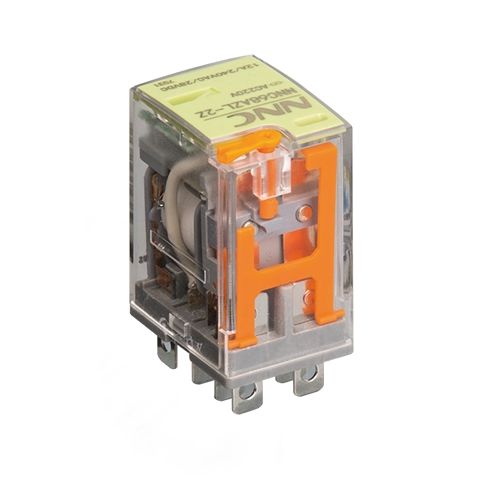

Introducing the NNC68A series, a line of miniature intermediate power relays that excel in durability and precise electrical switching. These miniature relays are designed with a compact form factor, making them ideal for integration into various industrial and commercial applications. The small size of these miniature relays ensures effortless incorporation into different systems, providing reliable and accurate control. The NNC68A miniature power relay is particularly valued for its ability to deliver consistent switching performance, making it an excellent choice for both manufacturing automation and building control systems. With its robust engineering, this series guarantees long-term reliability and is highly regarded for precision and dependability.
The operation of the NNC68A relay is based on electromagnetic induction. An electrical current flowing through the relay’s coil generates a magnetic field that triggers a mechanical switch. This switch controls an electrical circuit, allowing low-power signals to manage high-power circuits. This mechanism enhances both safety and operational efficiency.
SMD LED and Mechanical Indicators: Offers visual feedback on relay status, making monitoring and diagnostics straightforward.
Lockable Test Button: Allows for easy testing and verification of the relay's functionality without additional tools.
Adaptable Contact Poles: Available with configurations from 1 to 4 contact poles, catering to various circuit requirements.
High Switching Capacity: Handles up to 15A for single-pole and 12A for multi-pole setups, addressing a wide range of load needs.
PCB and Solder Terminals: Provides installation flexibility with both PCB and solder terminal options.
RoHS Compliance: Meets environmental and safety standards.
Certification: UL: E235027, TUV: R50260442, CQC: 14002115332, CE: 5399090516, ensuring high safety and quality standards.
Technical Details:
Contact Configurations: Includes SPDT, DPDT, TPDT, and 4PDT for single-pole; DPST-NO, TPST-NO, and 4PST-NO for normally open; SPST-NC, DPST-NC, TPST-NC, and 4PST-NC for normally closed configurations.
Maximum Switching Voltage: Supports up to 240VAC/28VDC, ensuring reliable operation across different voltage ranges.
Contact Resistance: Maintains a low resistance of 100mΩ max. at 6VDC 1A for efficient signal transmission.
Contact Material: Constructed from AgAlloy (AgSnO2) for durability and extended performance.
Mechanical Durability: Rated for a minimum of 1x10^7 operations, promising a long service life.
Electrical Endurance: Capable of withstanding at least 1x10^5 operations, demonstrating enduring reliability.
The NNC68A series miniature relays are versatile and well-suited for diverse applications, including industrial automation, telecommunications, power supply systems, security solutions, and automotive electronics. The series also offers micro miniature relays for even tighter spaces. Their compact size and high efficiency make them the ideal choice for applications requiring space-saving solutions without compromising reliability.
Packaging Information:
Inner Packaging: Each relay is individually protected in paper boxes.
Outer Packaging: Available in quantities of 600 for 1 and 2 pole relays, and 300 for 3 and 4 pole relays, with standardized packaging for efficient storage and shipping.
Accessories and Sockets:
Socket Models: Includes PTF08A, PTF08A3, PTF11A, PTF14A, designed to be compatible with the NNC68A series.
Certifications: UL and CE certifications ensure global compliance and safety.
Summary:
The NNC68A series miniature relays and miniature intermediate power relays are distinguished by their excellent design, combining compact size with high performance and top safety features. These relays are tailored for professionals who require both reliability and efficiency in their electrical switching tasks. Proven to deliver outstanding results, the NNC68A series miniature power relays have become the preferred choice across numerous applications. In industrial and commercial environments alike, these relays continue to set a high standard for quality and innovation in electrical switching technology.
For further details or to place an order, please contact our sales team. We are committed to offering exceptional customer service and support.
